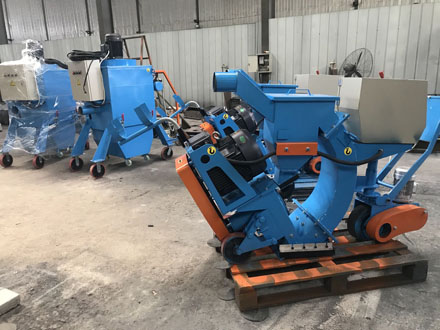

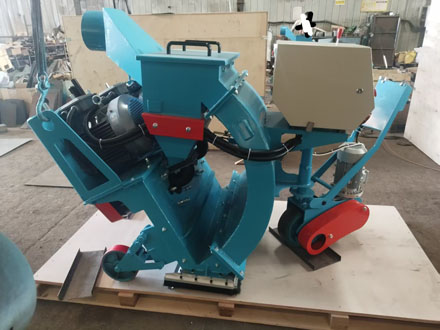

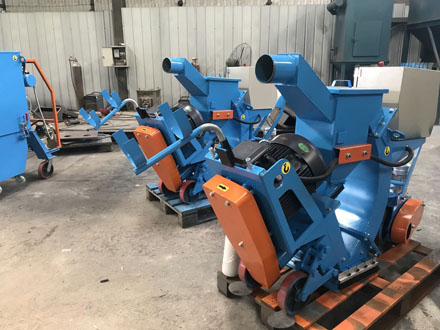

This 350 road shot blasting machine can be used on road surfaces, bridge decks, and steel plates, and the results are all amazing! Of course, there are also many customers who use it in the anti-corrosion operation of oil tanks. Its compact body makes it easier to enter the oil tank, and the operation and preparation work are simple. It can be cleaned and evacuated at any time. We have adopted advanced electrical control technologies such as variable frequency speed regulation, PLC control, phase sequence protection, and text display to ensure the accurate implementation of various functions. The equipment can set the cleaning speed, steel shot supply, pulse blowback time cycle, dust removal filter cartridge cleaning interval time, etc. based on different conditions of the cleaning surface, and achieve the ideal cleaning effect through parameter combination adjustment. Wide work scope and high efficiency. During construction, there is basically no damage to the road surface structure. Pulse automatic back blowing dust removal can achieve continuous operation. The steel shot automatically circulates inside the equipment with low consumption. The overall structure is reasonable, the disassembly is fast, and the maintenance and replacement of vulnerable parts are convenient. Equipped with a vacuum cleaner, it can achieve a dust-free or fine dust effect during operation, protecting the health of operators.

The detailed parameters of the equipment are as follows:

Working width: 350mm

Equipment size: 1940 × 526 × 1100mm

Working voltage: 380V

Walking speed: 0.5-30m/min

Cleaning efficiency: 200 ㎡/h

Number of shot blasting machines: 1 unit

Dust collector power: 4+2.2kw

Dust collector efficiency: The air dust removal capacity is 1250m ³/h

Shot blasting wheel motor: 15kw

Shot blasting motor power: 1.1kw

Total power: 22kw
