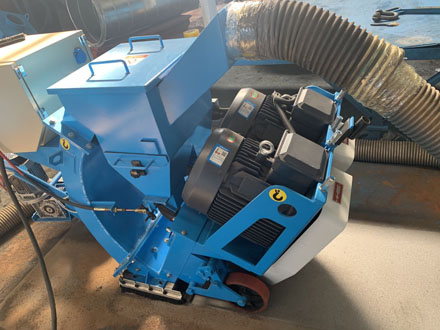

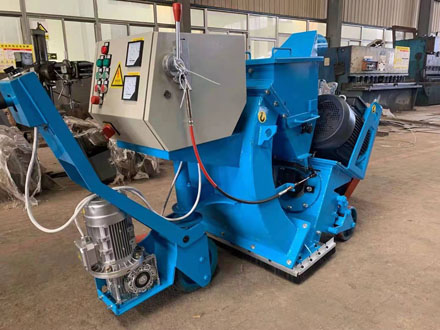

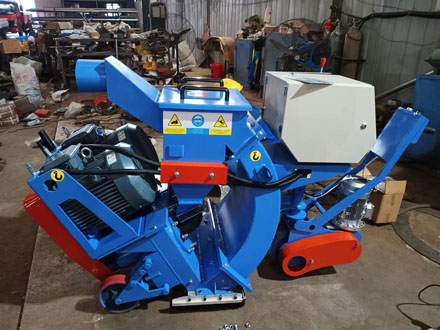

The role of road shot blasting machine is significant, and it is needed in many fields for shot blasting operations. It has applications in various fields such as bridge sanding, road asphalt removal, and steel plate anti-corrosion and rust removal. The road shot blasting machine uses motor-driven shot blasting wheels to generate centrifugal force and wind force during high-speed rotation. When a certain particle size of the shot flows into the shot pipe (the flow rate of the shot can be controlled), it is accelerated and brought into the high-speed rotating shot wheel.

In the process of industrial production, this machine is an essential equipment. I believe many people have seen it, but it occupies a very important position in the market. This equipment has obvious advantages in use, as follows:

1. Safe to use and easy to maintain;

This device is particularly safe during the operation process and is unlikely to malfunction. If there is a malfunction, it is due to wear and tear of vulnerable parts, which need to be replaced easily.

2. Easy operation and guaranteed equipment quality;

The components of the equipment are all high-quality products, and the operation is particularly simple. Especially during the operation of the machine, the sensitivity is particularly high. Using this type of machine for cleaning steel is safe and reliable, and the equipment is not prone to failure. It can work continuously without interruption, removing road surface roughness, marking lines, and removing road surface glue in a continuous way for shot blasting cleaning and pre-treatment.

3. High startup rate reduces maintenance workload;

The characteristics of the equipment are high start-up rate, reduced maintenance volume, which can save costs for production enterprises. In terms of equipment maintenance, there is no need to invest too much money, which is also the main reason why enterprises use shot blasting equipment. It uses a high-speed rotating impeller to throw the projectile onto the workpiece inside the chamber, achieving the purpose of cleaning.

The detailed parameters of the equipment are as follows:

Working width: 850mm

Equipment size: 1940 × 1026 × 1300mm

Working voltage: 380V

Walking speed: 0.5-30m/min

Cleaning efficiency: 450 ㎡/h

Number of shot blasting machines: 2 units

Dust collector power: 7.5+2.2kw

Dust collector efficiency: The air dust removal capacity is 1250m ³/h

Shot blasting wheel motor: 2 × 15kw

Shot blasting motor power: 1.1kw

Total power: 40kw
