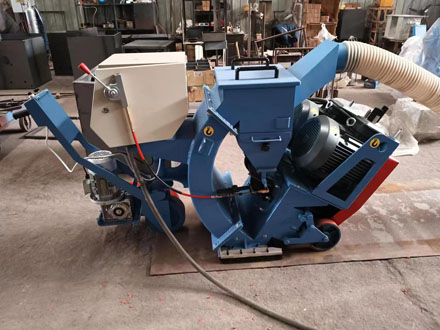

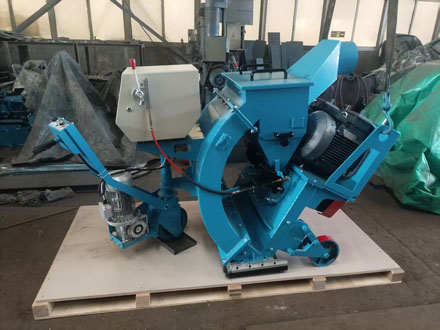

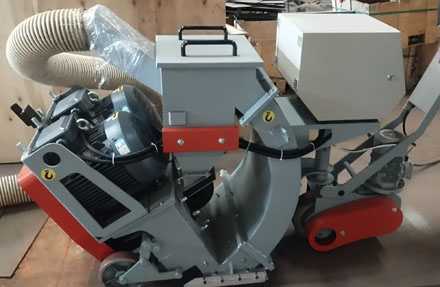

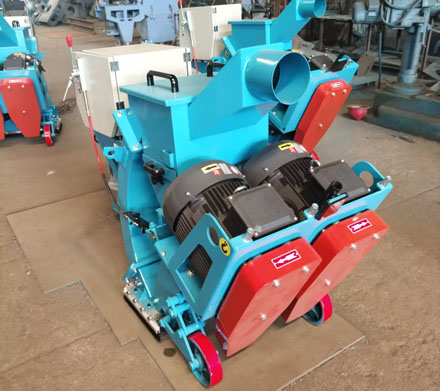

The 550 road surface shot blasting cleaning machine can be used for tunnel road surface roughening and waterproofing operations, as well as for polishing and fuzzing operations before bridge deck waterproofing. It can also be used for concrete road surface cleaning operations. In addition, it can be used for removing rust and oxide scale on steel plate surfaces, as well as for steel plate anti-corrosion and rust removal projects, such as cleaning and rust removal of large ship decks.

This mobile steel plate rust removal equipment is different from large through type steel plate cleaning equipment. Although the equipment is not large, its function is not small. It is easy to move and can clean a large area of steel plate. The rust and oxide scale on the surface of the steel plate can be effectively removed and cleaned.

The detailed parameters of the equipment are as follows:

Working width: 550mm

Equipment size: 1940 × 726 × 1100mm

Working voltage: 380V

Walking speed: 0.5-30m/min

Cleaning efficiency: 300 ㎡/h

Number of shot blasting machines: 2 units

Dust collector power: 4+2.2kw

Dust collector efficiency: The air dust removal capacity is 1250m ³/h

Shot blasting wheel motor: 2 × 11kw

Shot blasting motor power: 1.1kw

Total power: 29kw
